Information

Tech Specs

Technical Information

Number of Screens

1

Screen Size Class

27"

Viewable Screen Size

26.7"

Screen Mode

3840 x 2160 UHD

Panel Technology

Quantum Dot OLED

Quantum Dot Technology

Yes

Response Time Details

0.03ms GTG

Aspect Ratio

16:9

Pixel Pitch

0.153 mm x 0.153 mm

Horizontal Viewing Angle

178^°

Vertical Viewing Angle

178^°

Mount Type

Panel Mount

HDCP Supported

Yes

Maximum Adjustable Height

110 mm

Tilt Angle

-5^° to 21^°

Swivel Angle

-20^°to 20^°

Pivot Angle

-90^°to 90^°

Features

• Narrow Bezel
• VESA DisplayHDR True Black 400
• Dolby Vision
• NVIDIA^® G-SYNC^® Compatible
• Anti-reflective
• Picture by Picture
• Picture in Picture
• Cable Lock Slot
• Security Lock
• Stand Lock
• BFR Free
• PVC Free
• Arsenic-free Glass
• Mercury-free
• ComfortView Plus

Adjustable Stand

Yes

Stand Adjustments

• Tilt
• Pivot
• Height
• Swivel

Stand Included

Yes

---

Video

Maximum Resolution

3840 x 2160

Standard Refresh Rate

240 Hz

Colour Supported

1.07 Billion Colours

Dynamic Contrast Ratio

1,500,000:1

Brightness

• 250 cd/m^²
• 1000 cd/m^²

Tearing Prevention Technology

NVIDIA^® G-SYNC^® Compatible, AMD Free-Sync^™ Premium Pro, VESA AdaptiveSync

Colour Gamut

DCI-P3 99% (CIE 1976)

Pixel Per Inch (PPI)

166

---

Interfaces/Ports

Connectivity

Video port

• 1 DisplayPort 1.4 (HDCP 1.4 & 2.3) port (Supports up to 3840 x 2160, 240 Hz, DSC, HDR)
• 2 HDMI ports (HDCP 1.4 & 2.3) (Supports up to 3840 x 2160, 240 Hz, FRL, HDR, VRR as per specified in HDMI 2.1) (including one HDMI 2.1 FRL with eARC/ARC - to support Dolby ATMOS signal pass-through)

USB port

• 1 USB 5Gbps Type-B upstream port
• 3 USB 5Gbps Type-A downstream ports
• 1 USB-C 5Gbps downstream port (Power Delivery up to 15 W)

Audio Line Out

No

---

Built-in Devices

Built-in Devices

No

---

Environmental Conditions

Operating Temperature Range

0^°C to 40^°C

Non-operating Temperature Range

-20^°C to 60^°C

Operating Humidity Range

10% to 80% (Non-condensing)

Non-operating Humidity Range

5% to 90% (Non-condensing)

Maximum Operating Altitude

5 km

Maximum Non-operating Altitude

12.19 km

---

Power Description

Operating Power Consumption

39.40 W

Standby Power Consumption

0.5 W

Off-Mode Power Consumption

0.3 W

Frequency

• 50 Hz
• 60 Hz

Maximum Power Consumption

190 W

Voltage Current

2.20 Ah

---

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

100 x 100

Height

355.97 mm

Width

609.51 mm

Depth

72.63 mm

Height with Stand

516.01 mm

Width with Stand

609.51 mm

Depth with Stand

210 mm

Compressed Height with Stand

406.01 mm

Extended Height with Stand

516.01 mm

Weight (Approximate)

4.30 kg

Weight with Stand (Approximate)

6.79 kg

---

Miscellaneous

Package Contents

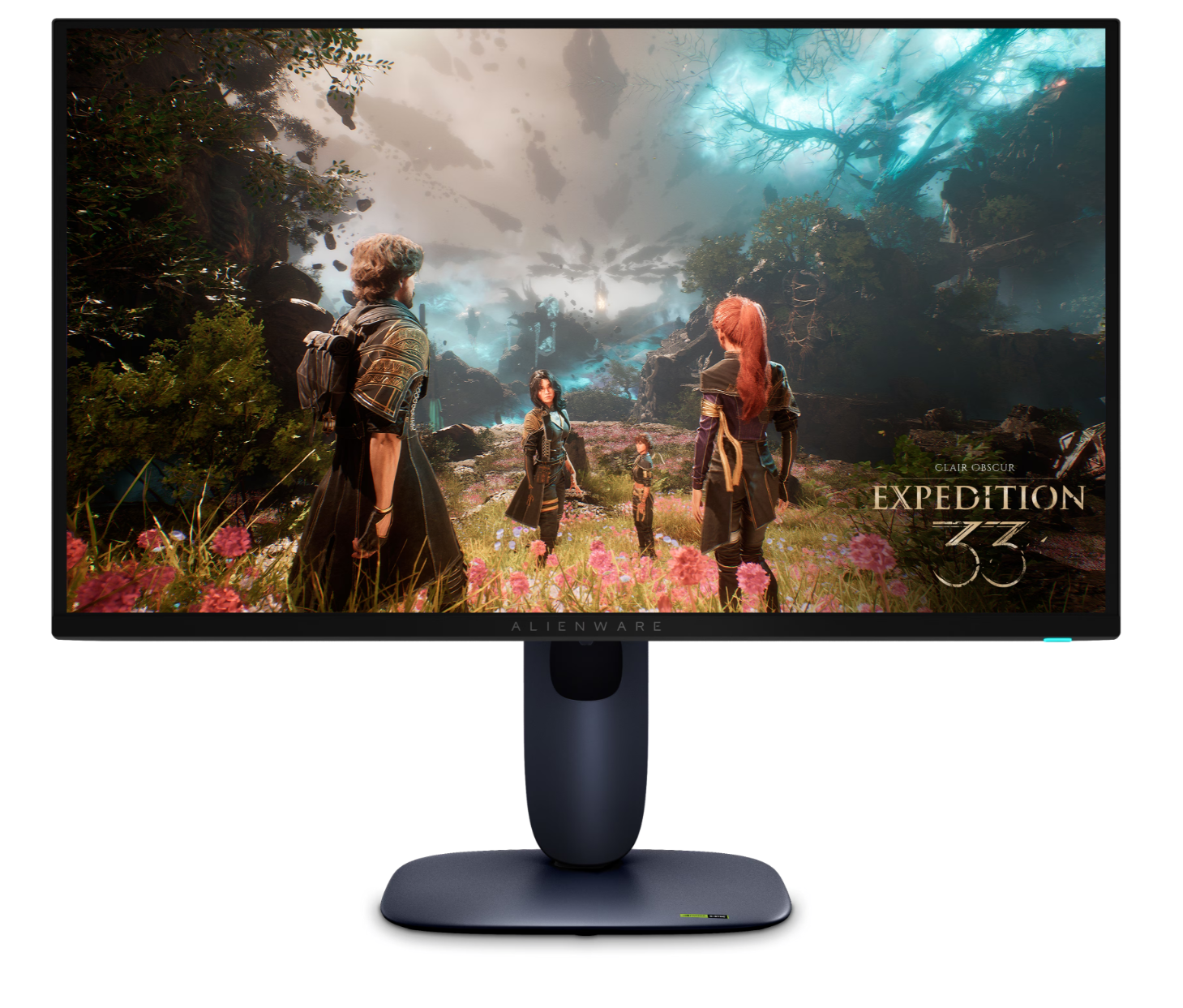

• Alienware 27 4K QD-OLED Gaming Monitor - AW2725Q
• Stand
• Microfiber Cloth
• QR Card
• Safety, Environmental, and Regulatory Information
• Alienware Sticker

Cables Included

• Power Cable
• 1 x DisplayPort-DisplayPort Cable - 1.80 m
• 1 x HDMI Cable - 1.80 m
• 1 x USB Type-A to Type-B 5Gbps Cable - 1.80 m

Application/Usage

Gaming

Environmental Compliance

• RoHS Compliant
• Product Safety, EMC and Environmental Datasheets
• Dell Regulatory Compliance Home Page
• Dell and the Environment
• BFR/PVC reduced monitor (The circuit boards are made from BFR/PVC-free laminates.)
• Arsenic-free glass and mercury-free for the panel only
